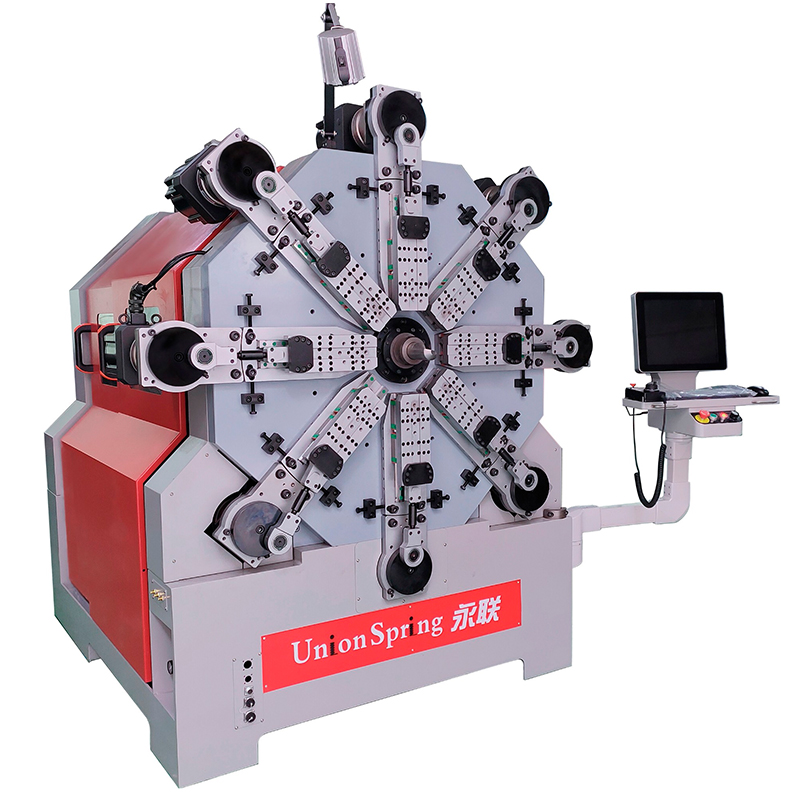

Products Description
1 The machine adopts unique camless and rockerless design, which reduces the technical requirements for machine adjustment and significantly reduces the time for machine adjustment.
2 Japan imported Sanyo motor and precision bearing parts, to improve the accuracy of action, to ensure stable operation, durable and effective extension of the service life of the machine.
3 Intelligent professional-grade industrial computer operating system, easy to understand and operate the operating interface, powerful enough to meet the requirements of complex multi-tasking.
4 Operating system protection device, wire feeder disconnection alarm, safety door protection mechanism, providing all-round protection for the operator and the machine.
Technical parameter
Model | US-1235R | US-1245R |
Wire Diameter | Ø0.8～Ø3.5MM | Ø1.2～Ø4.5MM |
Axis | 12~14 | 12~14 |
Wire Feed Wheel Sets | 3 Sets | 3 Sets |
Wire Feeding Axis | 4.5 KW | 5.5 KW |
Wire Rotary Axis | 2.7KW | 4.5KW |
Quill Rotary Axis | 1.0 KW | 1.2KW |
Slide Axis | 1.8KW×8 | 1.8KW×8 |
Spinner Axis(Optional) | 1.0KW | 1.0KW |
Free Arm Axis(Optional) | 1.0KW | 1.0KW |
Dimension (LxWxH) | 2130x1500x1900 (mm) | 2600x1750x2050 (mm) |
Weight (kg) | 3500kg | 5000kg |
The specifications and features are subject to change without notice.
