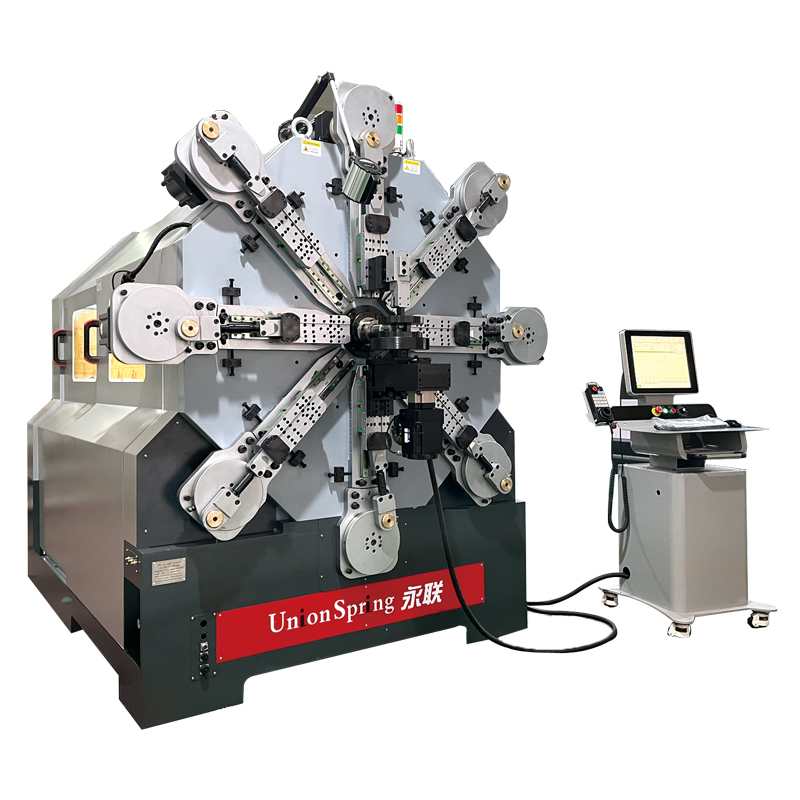

Products Description
1 The machine adopts unique camless and rockerless design, which reduces the technical requirements for machine adjustment and significantly reduces the time for machine adjustment.
2 Japan imported Sanyo motor and precision bearing parts, to improve the accuracy of action, to ensure stable operation, durable and effective extension of the service life of the machine.
3 Intelligent professional-grade industrial computer operating system, easy to understand and operate the operating interface, powerful enough to meet the requirements of complex multi-tasking.
4 Operating system protection device, wire feeder disconnection alarm, safety door protection mechanism, providing all-round protection for the operator and the machine.
Technical parameter
Model | US-1260R | US-1280R |
Wire Diameter | Ø2.0～Ø6.0MM | Ø3.0～Ø8.0MM |
Axis | 12-14 | 12-14 |
Wire Feed Wheel Sets | 4Sets | 4Sets |
Wire Feeding Axis | 7.5KW | 15KW |
Wire Rotary Axis | 4.5KW | 7.5KW |
Quill Rotary Axis | 2.0KW | 2.0KW |
Slide Axis | 4.5KW×8 | 5.5KW×8 |
Spinner Axis(Optional) | 1.8KW | 2.7KW |
Servo cutter (Optional) | 1.0KW | 1.0KW |
Dimension (LxWxH) | 3100x1930x2380 (mm) | 3200x2100x2480 (mm) |
Weight (kg) | 7500kg | 9500kg |
The specifications and features are subject to change without notice.
