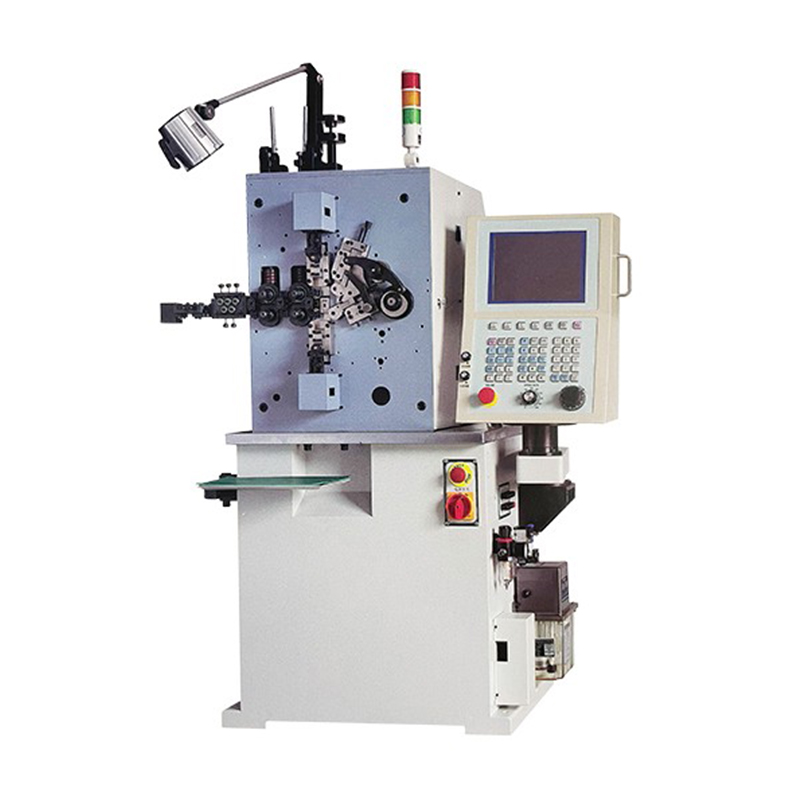

Products Description
1.Controlled with four axis:wire feed axis,OD Control Axis,cutter axis,Spacing Axis.

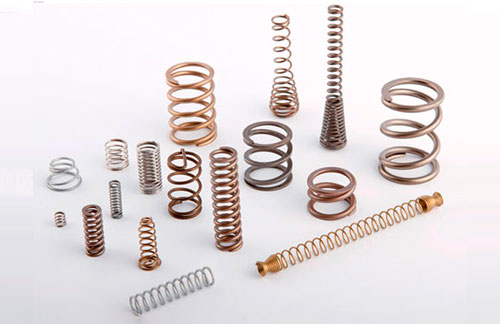

2.High-Precision Driven Axis, High-Precision Driven Axis, Precisely builds simple-shaped towers and compression springs.
3.High precision-driven access.Both right-hand and left-hand coiling.
4.Computer interface displayed in Chinese and English which makes the operation easy.The computer has software functions of automatic programming.
5. Free height detection machine and optical projection detection equipment can be installed, which can automatically correct the spring pitch to ensure spring accuracy and consistency
6. When the line is broken, the machine is abnormal when running the line, etc., the shutdown information will be displayed on the computer screen.
Technical parameter
Model | US-416 | US-425 | US-435 |
Wire Diameter | Ø0.3～Ø1.6MM | Ø1.0～Ø2.5MM | Ø1.5～Ø3.5MM |
Axis | 4 | 4 | 4 |
Max.Outside Diameter | 30mm | 50mm | 65mm |
Wire feeding speed | 120m/min | 110m/min | 100m/min |
Wire Feed Wheel Sets | 2Sets | 2Sets | 2Sets |
Wire Feeding Axis | 2.0KW | 2.7KW | 4.5KW |
Spacing Axis | 1.0KW | 1.2KW | 2.0KW |
Cutter Axis | 1.0KW | 1.2KW | 2.0KW |
OD Control Axis | 1.0KW | 1.2KW | 2.0KW |
Dimension (LxWxH) | 1100*900*1600(mm) | 1200*1200*1800(mm) | 1400*1600*2000(mm) |
Weight (kg) | 600kg | 1000kg | 1250kg |
