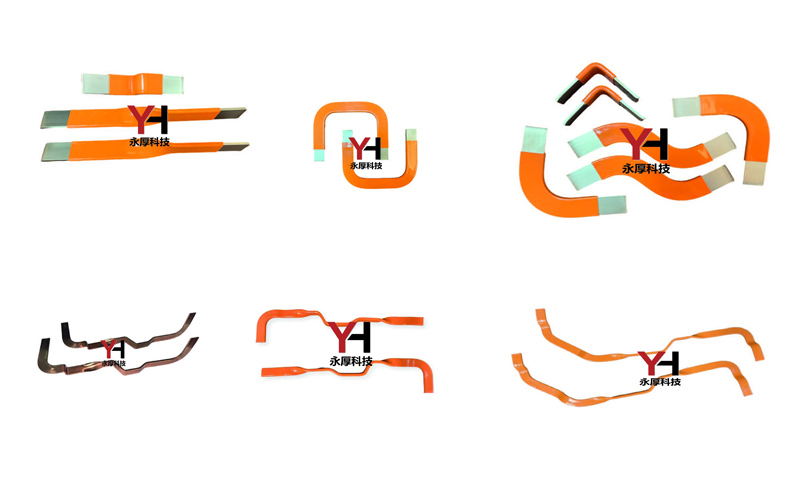

Copper Busbar Bending Machine

Copper Busbar Bending Machine
Send Inquiry
Description
Argument
Products Description

    1 The machine adopts unique camless and rockerless design, which reduces the technical requirements for machine adjustment and significantly reduces the time for machine adjustment.


    2 Japan imported Sanyo motor and precision bearing parts, to improve the accuracy of action, to ensure stable operation, durable and effective extension of the service life of the machine.


    3 Intelligent professional-grade industrial computer operating system, easy to understand and operate the operating interface, powerful enough to meet the requirements of complex multi-tasking.


    4 Operating system protection device, wire feeder disconnection alarm, safety door protection mechanism, providing all-round protection for the operator and the machine.



Technical parameter

    Model

    US-35E-5

    US-50E-8

    Wire Diameter Width

    35mm*5.0mm

    50mm*8.0mm

    Axis

    13-16

    13-16

    Wire Feed Wheel Sets

    4Sets

    4Sets

    Slide Axis

    2.7KW×8

    4.5KW×8

    Quill Rotary Axis

    2.0 KW

    2.0 KW

    Wire Rotary Axis

    4.4KW

    4.4KW

    Wire Feeding Axis

    5.5 KW

    7.5 KW

    Spinner Axis(Optional)

    2.0KW

    2.0KW

    Servo Cutter(Optional)

    1.0KW

    1.5KW

    Dimension (LxWxH)

    2400x2000x2100 (mm)

    3650x2500x2450 (mm)

    Weight (kg)

    6500kg

    8000kg
