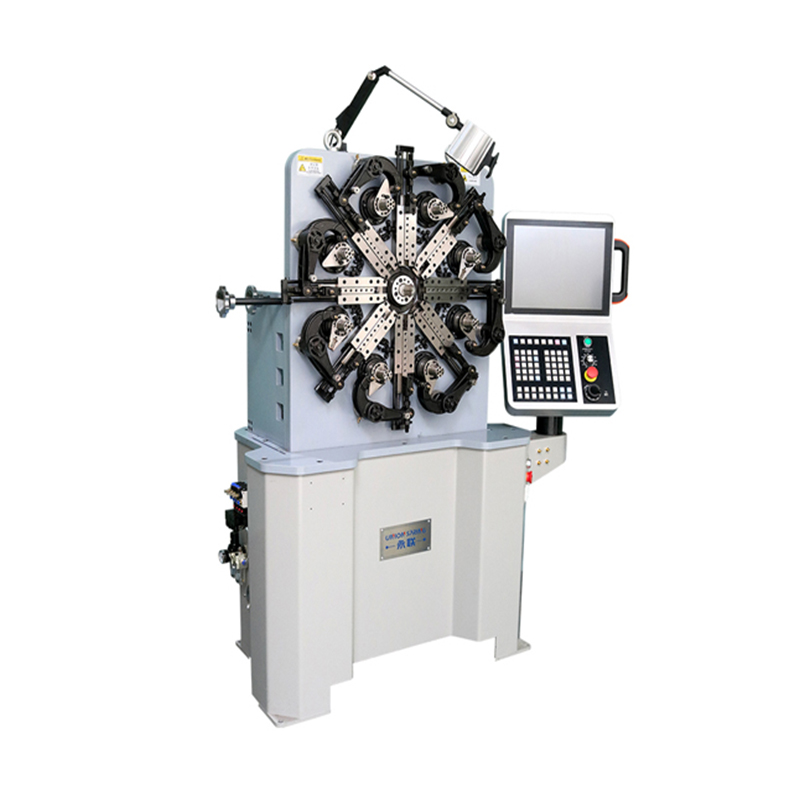

In modern industrial production, mechanical automation has become an important means to improve production efficiency and product quality. Among them, the US-20 CNC spring machine has occupied a pivotal position in hardware, electronics, automobiles and other industries with its excellent performance, wide application fields and efficient production capacity. This article will give a comprehensive and in-depth introduction to the technical characteristics, working principles, application fields and market advantages of the US-20 CNC spring machine.
Technical Features
As an automated production equipment integrating high precision, high efficiency and high stability, the core of the US-20 CNC spring machine lies in its advanced CNC technology and precise mechanical structure design. This machine adopts a Taiwanese computer control system combined with high-performance servo motors imported from Japan to achieve precise control of the production process. Its control interface is friendly and easy to operate, and even first-time users can quickly get started. At the same time, the US-20 also has high-speed and high-precision processing capabilities, and can easily cope with complex spring shapes and fine dimensional requirements.
In terms of technical details, the US-20 CNC spring machine is equipped with a multi-axis synchronous operation system including a camshaft, wire feeding shaft, rotating mandrel and coiling bend (optional accessory). Among them, the cam part is designed with eight sets of slides, and the precise coordination of the crank arm and the cam rotating shaft realizes the precise control of the slide movement. The wire feeding system adopts a wear-resistant and low-noise design to ensure the smooth and accurate wire transportation. In addition, the forward and reverse rotation function of the rotating mandrel and the flexible installation of the coiling device on the slide further improve the processing flexibility and production efficiency of the equipment.
Working principle
The working principle of the US-20 CNC spring machine mainly depends on the precise instructions of the CNC system and the precise coordination of the mechanical structure. During the processing, the user first inputs the parameters of the required spring through the CNC system, including wire diameter, number of turns, pitch, shape, etc. Subsequently, the system automatically calculates the motion trajectory and speed of each axis according to the input parameters, and controls the servo motor to drive each axis to move according to the predetermined trajectory.
During the wire feeding stage, the wire feeding shaft smoothly feeds the wire into the working area according to the instructions. After the cooperation of the camshaft and the rotating mandrel, the wire is gradually bent into the required spring shape. At the same time, the installation of the curling device on the slide makes the curling process of the spring more accurate and stable. During the entire processing process, key information such as the position of each axis, wire feeding length, production speed and production quantity are displayed on the screen in real time. Users can edit and modify program data online to achieve real-time monitoring and adjustment of the production process.
Application field
The US-20 CNC spring machine plays an important role in many industries with its powerful processing capabilities and wide application fields. In the hardware industry, it can produce various tension springs, compression springs, conical springs, double torsion springs, flat springs and other special springs to meet the requirements of different products for spring performance. In the electronics industry, US-20 can be used to produce precision electronic component springs, such as battery springs, connector springs, etc., to ensure the stability and reliability of electronic products. In addition, in the fields of toys, home appliances, sports equipment and automobiles, US-20 has also demonstrated its unique advantages, providing high-quality and efficient spring production solutions for these industries.
Market advantages
In today's increasingly competitive market, US-20 CNC spring machine has won the favor of many customers with its excellent performance and wide application fields. First of all, its high-precision and high-efficiency processing capabilities enable customers to produce more refined and stable spring products and improve the overall quality of the products. Secondly, the easy operation and simple adjustment of US-20 reduce the skill requirements of operators and improve production efficiency. Thirdly, its wear-resistant and low-noise design, as well as stable operating performance, reduce the maintenance cost of the equipment and noise pollution during use. Finally, US-20 CNC spring machine also has strong scalability and customization capabilities, which can be customized according to the specific needs of customers to meet the diverse needs of customers.
In summary, US-20 CNC spring machine has become an indispensable and important equipment in modern industrial production with its advanced technology, excellent performance and wide application fields. In the future development, with the continuous advancement of science and technology and the in-depth development of industrial automation, the US-20 CNC spring machine will continue to play its important role and provide strong support for the development of various industries.
