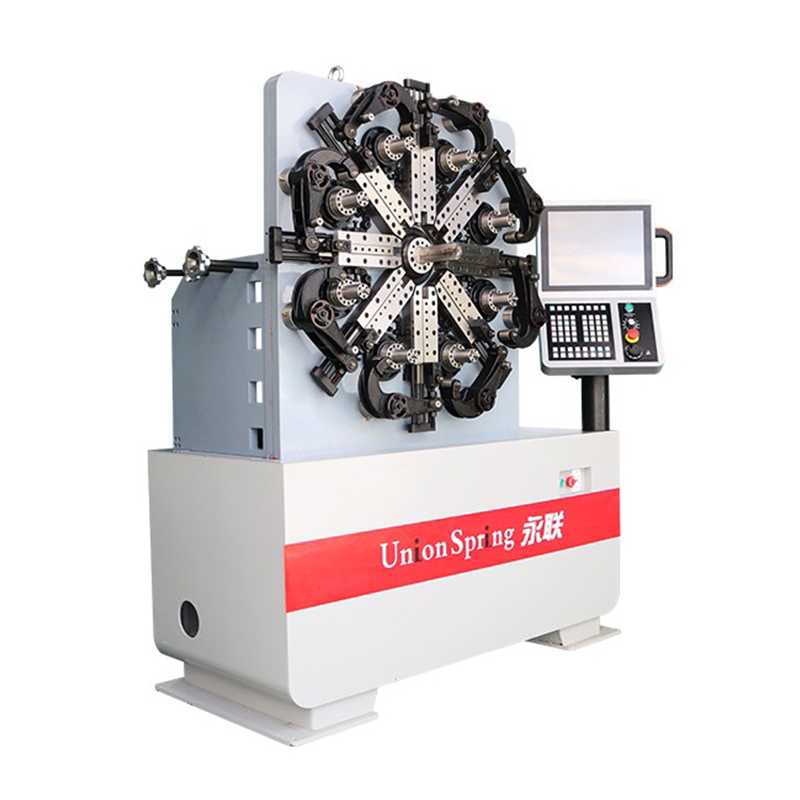

US-35 Spring Forming Machine

US-35 Spring Forming Machine
Send Inquiry
Description
Argument
Products Description

    1. The machine adopts computer control system imported from Taiwan and servo motor imported from Japan.

    2. The four axis of the machine are cam axis, wire feeding axisrotary quill axis, and spinner axis(optional accessory). The four axis can be operated synchronously.

    3. The position of each axis, the length of the wire feed, the production speed, and the number of production can be displayed on the screen. According to the working conditions on the display, the outer diameter and angle of the product can be modified at any time. It is equipped with precision detection and tracking equipment, which can automatically stop the machine if there are unqualified products.

    4, The machine is suitable for the production of double torsion springs, straight springs, tower springs, tension springs, rectangular springs, vortex springs and various fancy springs and shaped springs.

Technical parameter

    Model

    US-35

    Wire Diameter

    Ø1.0Ø4.0MM

    Axis

    3-4

    Wire Feed Wheel Sets

    3Sets

    Cam Axis

    5.5KW

    Quill Rotary Axis

    1.0KW

    Wire Feeding Axis

    5.5KW

    Spinner Axis(Optional)

    1.0KW

    Dimension (LxWxH)

    1650*1100*1900(mm)

    Weight (kg)

    1500kg


The specifications and features are subject to change without notice.
