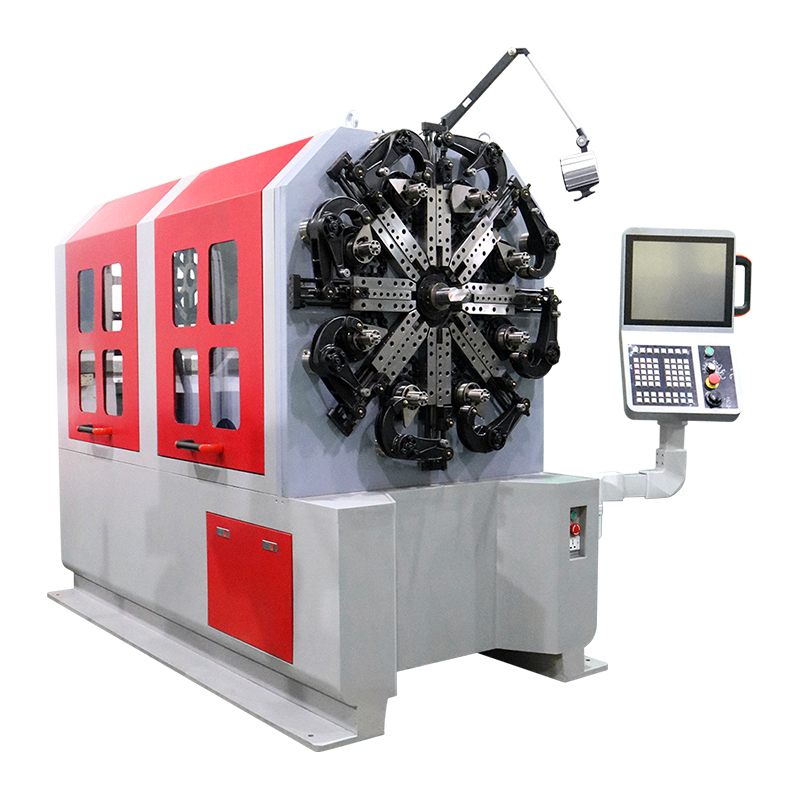

US-540R Spring Forming Machine

US-540R Spring Forming Machine
Send Inquiry
Description
Argument
Products Description

    1. Wire rotary machine adopts Taiwan computer control system and Japanese servomotor, which has the characteristics of easy operation, high speed and high precision.

    2. The five axis are cam axis, wire feeding axis, rotary wire axis, rotary quill axis, and spinner axis(optional accessory). The five axis can be operated synchronously. The position of each axis, the length of the wire feed, the production speed, and the number of production can be displayed on the screen. It is very easy to edit and modify the program data online.

    3. The cam part has eight sets of slides, crank arm and CAM rotating axis. The wire feeding system is installed horizontally behind the machine. The wire rotary axis can control the rotation of wire, making the speed of high-difficulty special-shaped spring adjustment easier and faster.The rotating quill axis can be rotated positively or negatively, and the spinner device is installed on the slide.

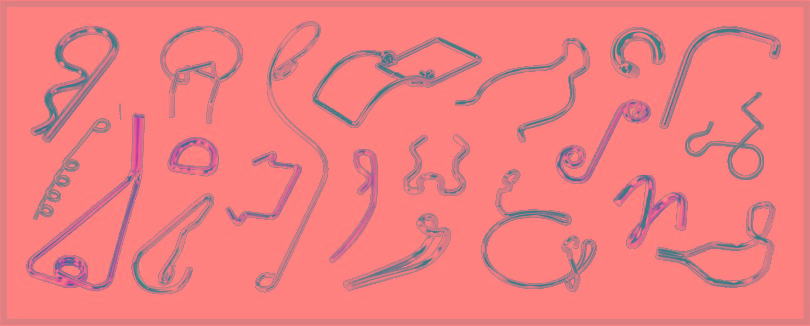

    4. The wire rotary spring machine can be applied to the production of lighting, electronics, toys, home appliances, sports equipment, automobile and other industries need precision spring.

Technical parameter

    Model

    US-540R

    Wire Diameter

    Ø1.0Ø4.0MM

    Axis

    4-6

    Wire Feed Wheel Sets

    3Sets

    Cam Axis

    5.5KW

    Quill Rotary Axis

    1.0KW

    Wire Rotary Axis

    2.7KW

    Wire Feeding Axis

    5.5KW

    Spinner Axis(Optional)

    1.0KW

    Dimension (LxWxH)

    2300*1600*1950(mm)

    Weight (kg)

    2300kg


The specifications and features are subject to change without notice.
