Products Description
The machine is equipped with 8 sets of servo motors and has high accuracy. It can achieve an accuracy of ± 0.05 millimeters, and the repeatability of machining accuracy can reach ± 0.02 millimeters. It is also equipped with a high-precision encoder to ensure the accuracy of the processed workpiece.
This machine has a high degree of automation. It is equipped with CNC control system, which can accurately process the required size of the product and reduce the labor intensity of the workers. The machine is also equipped with a variety of safety devices, which can effectively prevent any potential safety accidents.

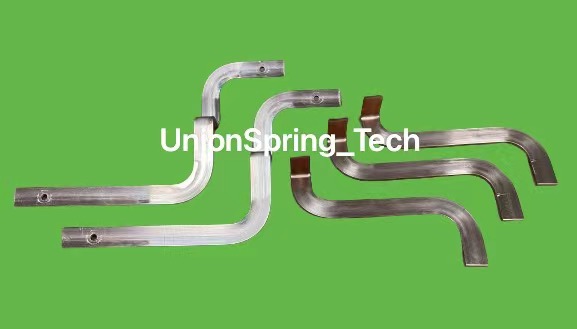

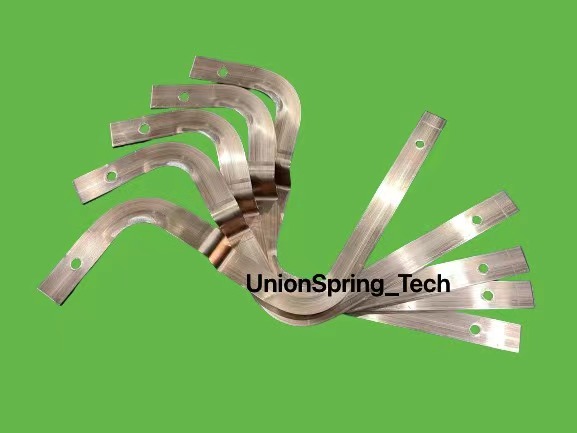

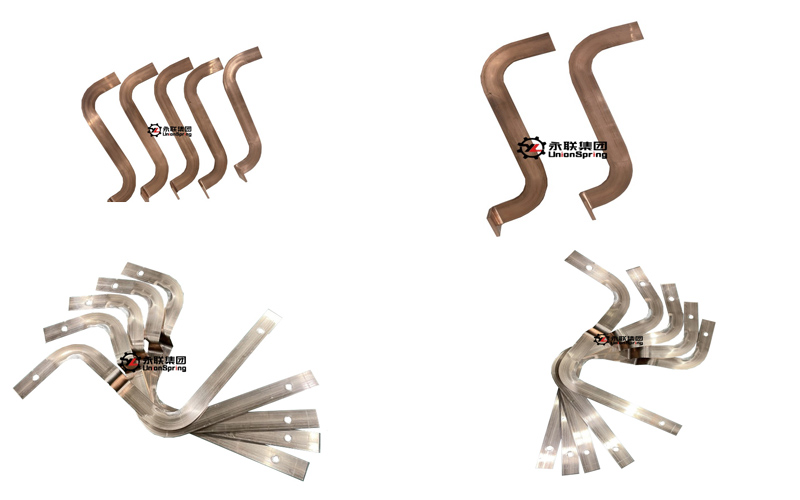

Copper Busbar Bending, Punching, Cutting Machine is a very advanced equipment with excellent performance. It has high precision, good stability, high degree of automation, and a variety of safety devices. It is suitable for processing copper busbar in electrical equipment manufacturing, power system construction, instrumentation, and other industries.
Model
US-TP35-6
Wire Diameter
1.5mm ≤ T ≤ 6mm
10mm ≤ W ≤ 35mm
Axis
8
Wire Feed Wheel Sets
2 Sets
Wire Feeding Motor
2.7kw
Forming Motor
2.0KW×3
Spinner Motor
2.0KW×2
Punching Motor
7.5KW
CutterAxis
2.0KW
Dimension(LxWxH)
2600*2000*2100(mm)
Weight(kg)
2500kg
